  Electrosurgical Units Vessel sealing Systems

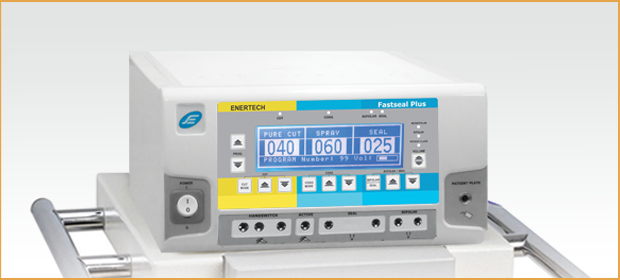

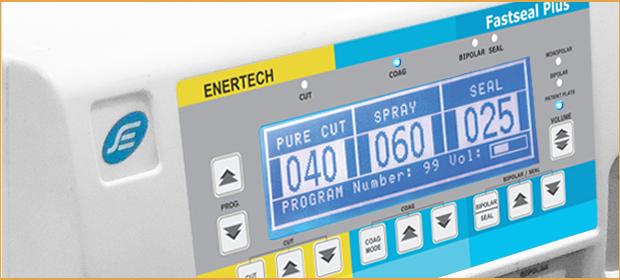

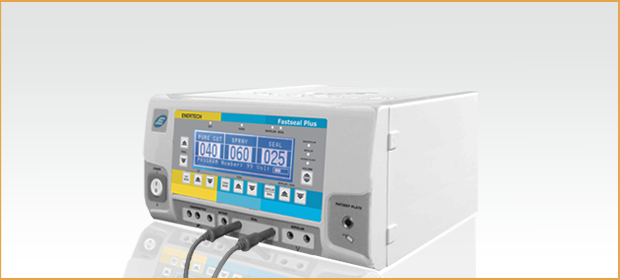

       Fastseal Plus :


 Quick Reference

 Technical Specification

  Standard Vessel Sealing Cum Electrosurgical unit.
  Graphical LCD Display.
  400w Power.
  99 programmable.
  Patient Plate Conductivity monitoring system.
   99 Programs Memory Display
:
 Graphical LCD Display.
  Dimension ( W x H x D )
:
 300mm x 150 mm x 340 mm.
  Weight
:
 5.5 kg.
  Input Supply Voltage
:
 230 VAC + 15%@ 50/60Hz (110 V optional).





 Monopolar Modes


  Cut :
  Coag :

Mode
Max. Power Watt
Operating Frequency
Pure cut
400 W
480 khz
Blend 1
250 W
480 khz
Blend 2
200 W
480 khz
Endocut
99 W
480 khz
Mode
Max. Power Watt
Operating Frequency
Spray
120 W
480 khz
Fulgurate
150 W
480 khz
Dessicate
150 W
480 khz






 Bipolar Modes

 Sealer Modes

Mode
Max. Power Watt
Operating Frequency
Bi-Coag
120 W
480 khz
Bi-Cut
120 W
480 khz

Mode
Max. Power Watt
Operating Frequency
Seal
150 W
480 khz
