  Electrosurgical Units Vessel sealing Systems





       Maxseal :


 Quick Reference
 Technical Specification

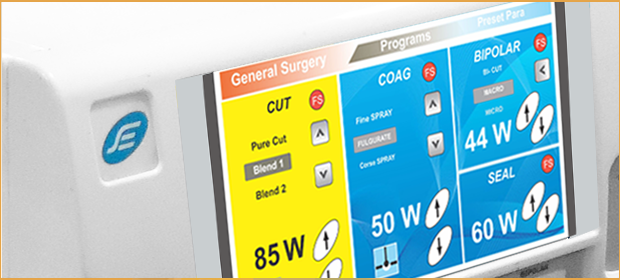

  Touch Screen Operation.
  Patient Plate conductivity monitoring system (PP-CMS.).
  Accessories contact detection during Plug-in and operation.
  Multiple Modes-1 pure cut, 1 precise cut, 5 blend, 3 Endo Cut, 2 Spray,
    2 Fulgurate, 1 Dessicate.
  1 Bi-Cut, 2 Bi-Coag and 1 Seal Mode.
  100 programs memory.

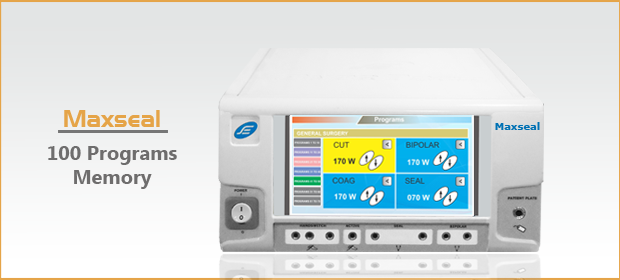

  100 Programs Memory Interface
:

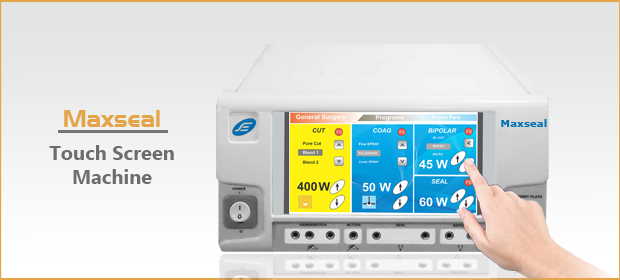

 Touch screen.
  Dimension ( W x H x D )
:
 300 mm x 150 mm x 340 mm.
  Weight
:
 5.5 kg.
  Input Supply Voltage
:
 230 VAC + 15%@ 50/60Hz (110 V optional).





 Monopolar Modes

Mode
Maxx. Power Watt
Rated Load (Ohms)
Program
Operating Frequency
Pure Cut
400 W
500
100
480 khz
Precise Cut
300 W
500
100
480 khz
Blend 1
250 W
500
100
480 khz
Blend 2
225 W
500
100
480 khz
Blend 3
200 W
500
100
480 khz
Blend 4
175 W
500
100
480 khz
Blend 5
150 W
500
100
480 khz
Endo Cut 1
150 W
500
100
480 khz
Endo Cut 2
100 W
500
100
480 khz
Endo Cut 3
75 W
500
100
480 khz






Mode
Maxx. Power Watt
Rated Load (Ohms)
Program
Operating Frequency
Coarse Spray
120 W
500
100
480 khz
Fine Spray
100 W
500
100
480 khz
Coarse Fulgurate
150 W
500
100
480 khz
Fine Fulgurate
150 W
500
100
480 khz
Dessicate
150 W
500
100
480 khz






 Bipolar Modes

Mode
Maxx. Power Watt
Rated Load (Ohms)
Program
Operating Frequency
Bi - Cut
120 W
500
100
480 khz
Macro
120 W
500
100
480 khz
Micro
80 W
500
100
480 khz





 Sealer Modes

Mode
Maxx. Power Watt
Max Power Circuit Current
Peak to Peak Voltage
Operating Frequency
Crest Factor
Seal
150 W
4.4 Amps
700 (350)
480 khz
1.5
