Auto Focus
Due to high Focus Co-efficient of LEDs, the beam formation takes place at exactly 1 meter distance. Hence manual adjustment is eliminated; focus can be attained from any convenient angle by simple adjustment of distance of dome from site.







---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

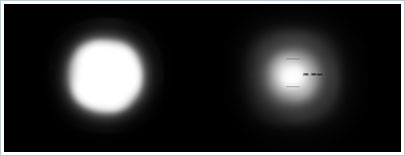

Beam Formation
Enertech LED light produces high light intensity across the full illuminate area avoiding the variable contrast lighting and distractions, and offers uniform Vision for working area. Each Reflector generates homogeneous lighting for surface. This creates an ideal depth of illumination, enabling the operator to work without the need to make the readjustments. Traditional Operating Theater lights create a high light intensity by squashing the light flux into the middle of the beam, creating a “hot Spot”. This high contrast ‘hot spot’ gives a very bright centre, leaving the rest of the field relatively dim in-comparison.



---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

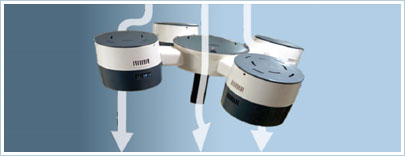

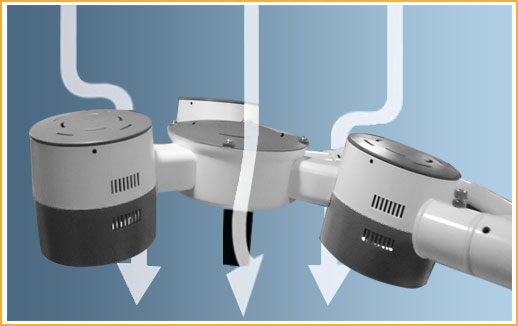

Laminar air flow compatibility and Compact design
The open design of the Enertech lights reduces the Surface area that impedes the flow of air from the air supply ceilings, resulting in a less turbulent flow underneath the light and thus controlling the contamination in the operating room. The shape of Enertech’s DOME assures the visual comfort and is particularly suitable for Laminar Flows. Lastly its compact design makes the Enertech LED light specifically small, flat and streamlined which in turn gives it s distinctive and justifiably futuristic appearance.



---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

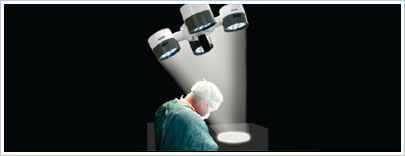

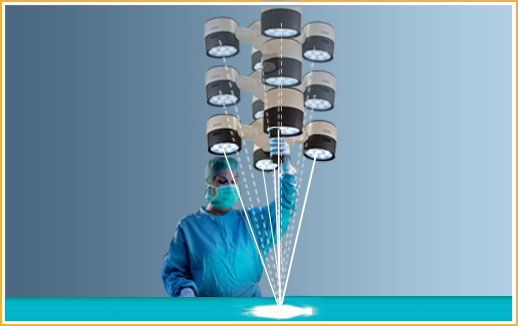

Shadow Free illumination
Shadows exist in surgery, created by surgeon position, surgical team movement, equipment or the depth of a wound. The key is to minimize shadows so a surgeon always has the clearest possible view of the surgical site. Enertech LED light insures the relation between light body and light field diameter to perform an optimum illumination of the OT field in terms of area and depth. The Enertech reflectors are designed to construct a number of light beams to dissolve the shadows.



---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

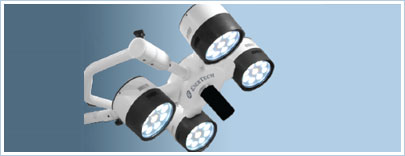

Suturing Light for convenient post-operative procedure
When the lights are turned off, a low intensity radiant beam is emitted so that suturing process can be carried out in great comfort and without time delay.







---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

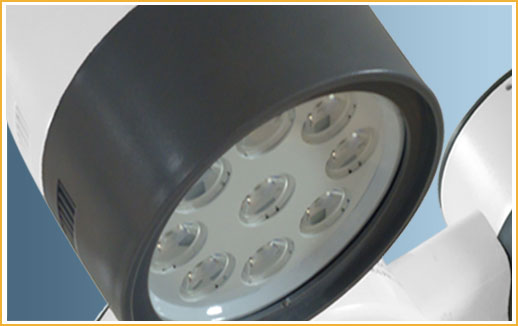

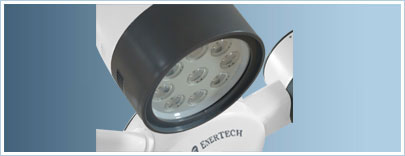

Multi Lens System
Good Visibility and the homogeneous illumination at the surgical site are the key elements during the operation. Therefore Enertech has design its Multi-lens system based on the individual optical lens principle. Since each LED’s has its own convergent lens, each creates its own light field. It distributes the emitted light volume uniformly in the operating room.

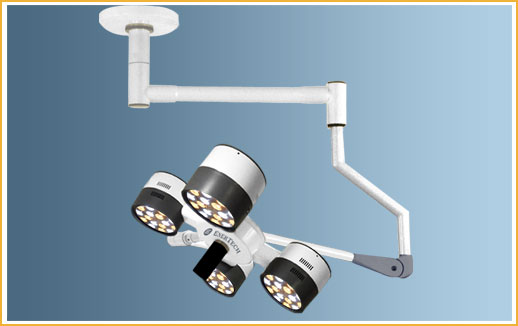

Nova LED F + F
Nova LED Me + Me
Nova LED - F + Me

Nova LED - Me
Nova LED - F
Nova LED - Me - M

Nova LED - F - M
Nova LED - Ex





Standard Series - Full Dome
Standard Series - Medium Dome
Standard Series - Examination Dome
Technical Data
Nova LED - F
Nova LED - Me
Nova LED - Ex
Reflector System
4
3
1
Illumination Intensity
140000 Lux.
90000 Lux.
40000 Lux.
LED Service Life
50000 Hours.
50000 Hours.
50000 Hours.
Colour Temperature
5500 K.
5500 K.
5500 K.
Colour Rendering Index
93 Ra
93 Ra
93 Ra
Temperature increase
in Surgeon's head area
< 2 ° C
< 2 ° C
< 2 ° C
Index Light Spot
200 - 250 mm
200 - 250 mm
200 - 250 mm
Brightness Adjustment
Nearly 0%- 100%
From Panel or Remote Control
Nearly 0%- 100%
From Panel or Remote Control.0
Nearly 0%- 100%
From Panel or Remote Control.
Power
230 VAC/ 50/60 Hz.
230 VAC/ 50/60 Hz.
230 VAC/ 50/60 Hz.







Eco Line Twin
Eco Line
Eco Line - M

Eco Line - Ex






EcoLine Series
EcoLine Series - Examination
Technical Data
Eco Line
Eco Line - Ex
Reflector System
4
1
Illumination Intensity
100000 Lux.
35000 Lux.
LED Service Life
40000 Hours
40000 Hours
Colour Temperature
5200 K.
5200 K.
Colour Rendering Index
90 Ra.
90 Ra.
Temperature increase
in Surgeon's head area
< 2 ° C
< 2 ° C
Index Light Spot
220 - 280 mm
220 - 280 mm
Brightness Adjustment
Nearly 0%- 100% From Panel
Nearly 0%- 100% From Panel
Power
230 VAC/ 50/60 Hz.
230 VAC/ 50/60 Hz.

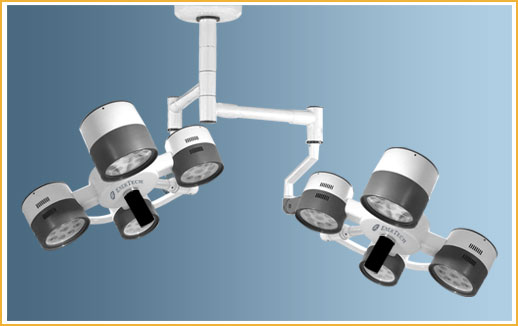

VariCol Twin
VariCol - M
VariCol








Colour Series
Technical Data
Vari Col
Reflector System
4
Illumination Intensity
140000 Lux.
LED Service Life
50000 Hours
Colour Temperature
3800 K. - 5600 K. Variable
Colour Rendering Index
Variable
Temperature increase in Surgeon's head area
< 2 ° C
Index Light Spot
200 - 250 mm
Brightness Adjustment
Nearly 20%- 100% From Panel or Remote Control.

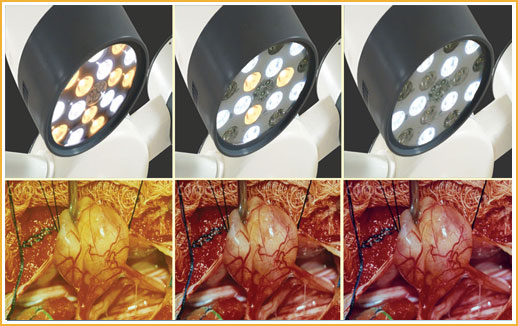

 Variable Colour Temperature :

The colour temperature can be varied in multiple steps from 3800 K to 6800 K in steps of 200 K.
A very wide range of possible 20 options is provided.
Light with a higher colour temperature improves the ability to concentrate, which allows the surgeons
  to have optimum visual conditions depending on the extent of perfusion of the surgical sites.
A better contrast can be achieved by changing the light colour temperature in accordance with the
  tissue type and the structure of the OT Light Field.



Difference Points
Standard Series
Eco Series
Lux Intensity

  Standard Series has following Lux Intensity :

  a] 140000 Lux for Full Dome.

  b] 90000 Lux for Medium Dome.

  c] 40000 Lux for Examination.

  Eco Series has following Lux Intensity :

  a] 100000 Lux for the Full Dome.

  b] 35000 Lux for Examination.



LED Service Life
  50000 Hours.
  40000 Hours.
Brightness Adjustment
  In Standard Series intensity can be adjusted form the   Control Panel and Remote Control.

  Eco Series Intensity can be adjusted with the Control Panel   only.

Control Panel
 Push Button is used for increasing and decreasing the  illumination. Brightness of Light is shown in percentage   format on display which is on control panel which vary from   5% to 100%

  Knob placed near the center of the control panel is used for   increasing or decreasing the illumination.




Index Light Spot
  200 - 250 mm.
  220 - 280 mm
Colour Rendering Index
  93 Ra.
  90 Ra.
Colour Temperature
  5200 K.
  5500 K.
Options
 Combinations available in Standard Series are from Full   Dome, Medium Dome and Examination Dome.

  Combinations available in Eco Series are from Full Dome   and Examination Dome.

Warranty Terms
  3 Years on LED.
  2 Years on LED.
