  Electrosurgical Units Vessel sealing Systems





       Bisealer :


 Quick Reference

 Technical Specification

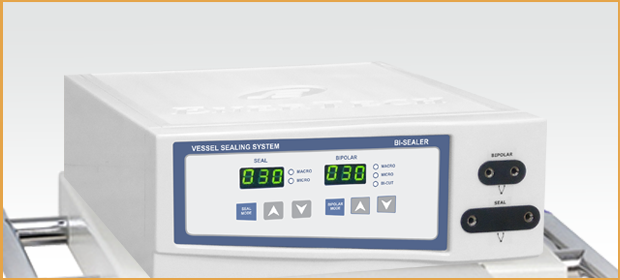

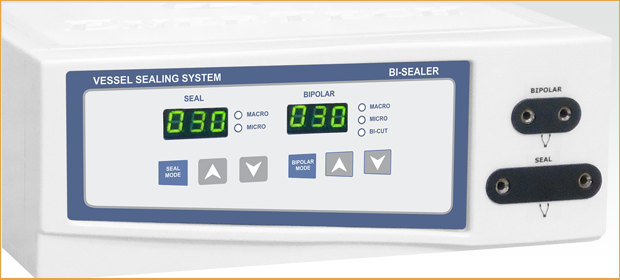

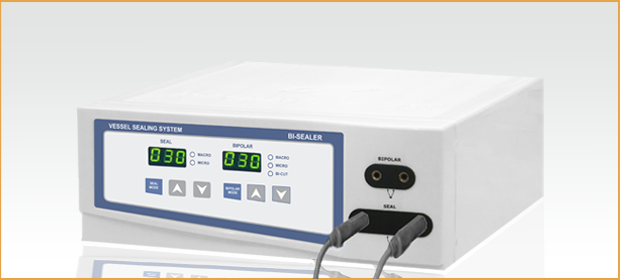

  Vessel Sealing & Bipolar Generator.
  7 Segment LED Display.






  Display
:
 7 segment LED Digital.
  Weight
:
 3 Kg.
  Dimension ( W x H x D )
:
 290 mm x 110 mm x 300 mm.
  Keyboard
:
 Feather Touch.
   Input Supply Voltage
:
 230 VAC + 15% @. 50/60 Hz (110 V optional.)



 Sealer Modes

Mode
Max. Power Watt
Max Power Circuit Current
Peak to Peak Voltage
Operating Frequency
Crest Factor
Soft
150 W
4.4 Amps
560 (280)
480 khz
1.5
Force
150 W
4.4 Amps
700 (350)
480 khz
1.5





 Bipolar Modes

Mode
Max. Power Watt
Max Power Circuit Current
Peak to Peak Voltage
Operating Frequency
Crest Factor
Macro
120 W
2.2 Amps
560(280)
480 khz
1.5
Micro
80 W
2.2 Amps
480 (240)
480 khz
1.5
Force
120 W
2.2 Amps
620 (310)
480 khz
1.5
